Battery for the AP20 12

Change battery step-by-step

➜ GEB321 batteries must be used in the AP20. GEB211/GEB212 do NOT work with AP20.

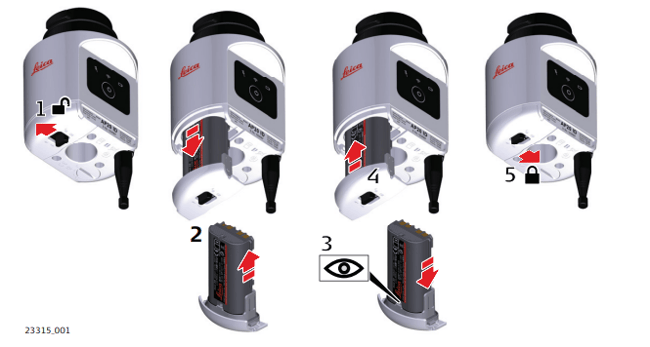

  1. Push the slide fastener of the battery holder in the direction of the arrow with the open-lock symbol.
  2. Remove the battery holder from the compartment. Remove the battery from the holder.

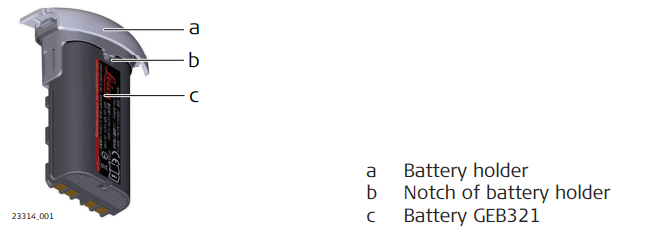

  3. To insert the battery, attach the battery to the batter holder. Align the battery to fit notch of battery holder.
  4. Insert the battery holder into the compartment.
  5. Push the slide fastener in the direction of the arrow with the closelock symbol.
