Battery for iCON gps 70 4.2.2

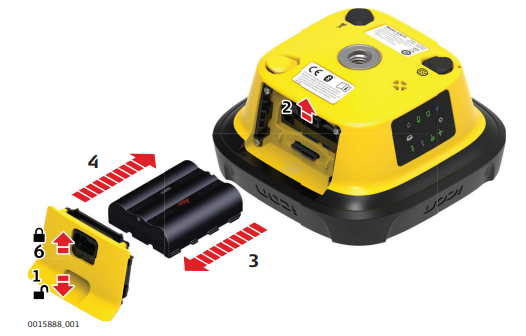

Change battery stepby-step

  1. Push the slide fastener of the battery compartment in the direction of the arrow with the open-lock symbol. Remove the cover.
  2. To remove the battery, push the retaining clip upwards. This releases the battery from its fixed position.
  3.  Remove the battery.

  4. To insert the battery, slide the battery into the battery compartment with the battery contacts facing downwards. Push the battery into the compartment so that it locks into position.
  5. Insert the cover of the battery compartment into the compartment.
  6. Push the slide fastener in the direction of the arrow with the closelock symbol.
