Batteries: Installing the Internal Battery 3.2.1

Insert and remove the battery step-by-step

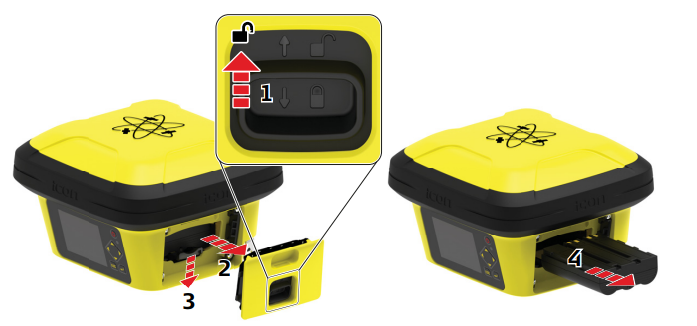

  1. Push the slide fastener of the battery compartment in the direction of the arrow with the open-lock symbol.
  2. Remove the cover.

  3. To remove the battery, push the retaining clip downwards. This releases the battery from its fixed position.
  4. Remove the battery.

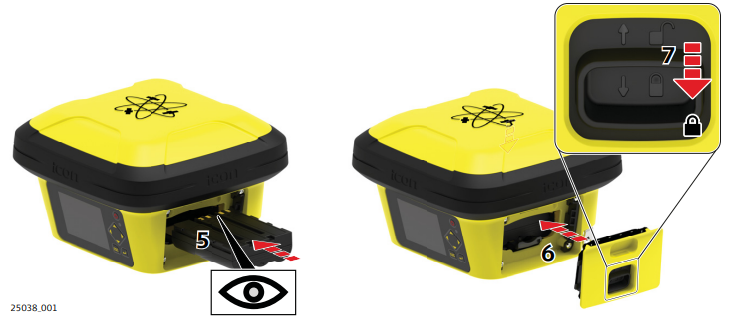

  5. To insert the battery, slide the battery into the battery compartment with the battery contacts facing upwards. Push the battery into the compartment so that it locks into position.
  6. Put the cover of the battery compartment back into place.

  7. Push the slide fastener in the direction of the arrow with the closelock symbol.
