Base Station Setup over Known Point, iCON iCG60

Base Station setup over known point step-by-step

1. Open the Base Setup app.
   1. When using the Profile Wizard for setting up an iCON iCG60 base station, there is an option to proceed directly to the next step. See also: How to set up a GNSS Profile for iCON iCG60

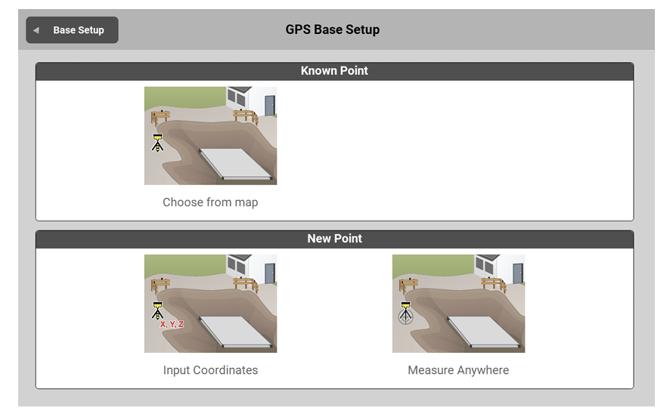

2. Select New Point - Input Coordinates.

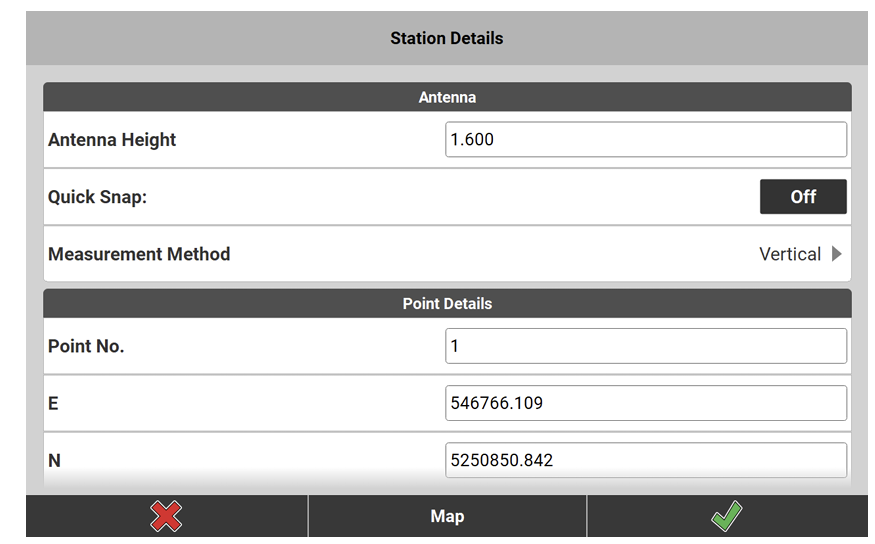

3.  Enter the antenna and point information in the Station Details screen, tap to accept.


   1.  Once  is pressed, the GNSS Base starts transmitting corrections.

   ---


   Or alternatively, Measure Anywhere:
   Open the Base Setup app.
   1.  When using the Profile Wizard for setting up an iCON iCG60 base station, there is an option to proceed directly to the next step. See also: How to set up a GNSS Profile for iCON iCG60
   From the GPS Base Setup Menu, select New Point - Measure
    Anywhere.

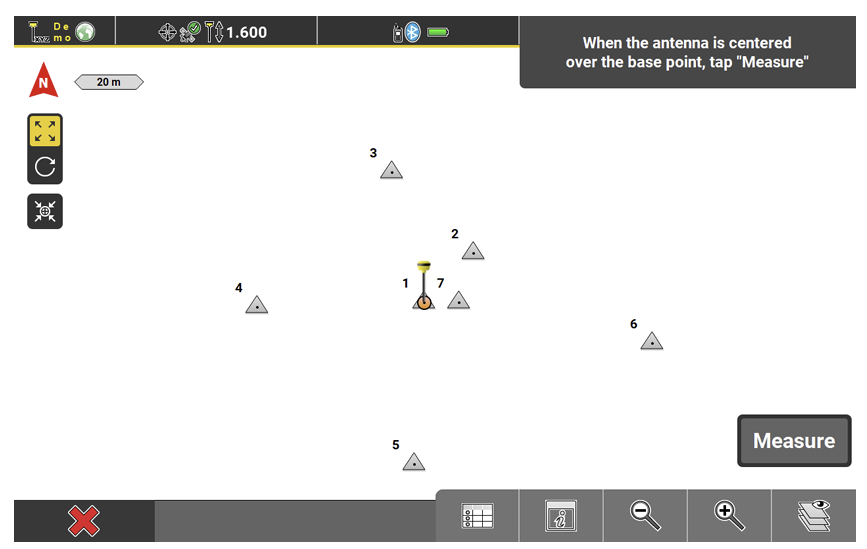

   Centre the antenna over the base point, and tap Measure.

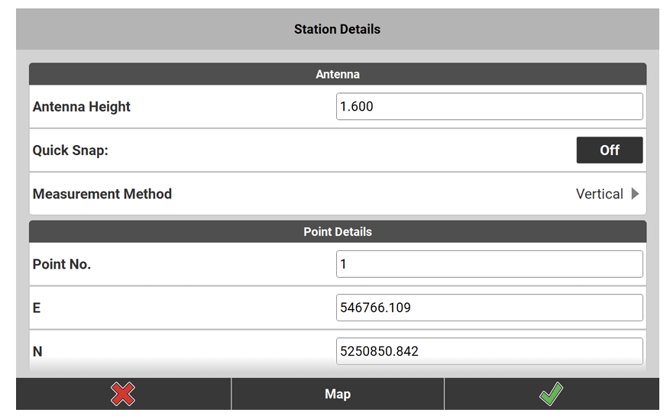

    The Station Details screen is displayed. Check the information, and tap  to accept.
   Once  is pressed, the GNSS Base starts transmitting corrections.
