➜ Below, all apps are listed which contain tools/functions that are dependent on the 'iCON build' licence level. For an overview on the availability of whole apps on the different licence levels refer to: Availability of Apps
Signs and symbols used in the tables below are as follows:
● = by default included
○ = optionally available by acquiring an optional licence
– = not available for/with
As-Built app
All tools are available on all licence levels except for:
1) Grid & Scan is optionally available with an active 'Scan and Adv. Surfaces' licence.
2) Manage Smart Coding is optionally available with an active 'Smart Coding' licence.
➜ For further information on optional licences refer to: Availability of Optional Licences
➜ For an overview on all available tools refer to: Measure Toolbox Functions
Layout Points app
All tools are available on all licence levels except for:
➜ For an overview on all available tools refer to: Layout Points Toolbox functions
Layout Lines app
All tools are available on all licence levels except for:
➜ For an overview on all available tools refer to: Layout Lines Toolbox functions
Checks app
All tools are available on all licence levels except for:
➜ For further information on optional licences refer to:
Availability of Optional Licences
➜ For an overview on all available tools refer to:
Toolbox functions
Sketching app
All tools are available on all licence levels except for:
➜ For an overview on all available functions and tools refer to:
Sketching functions Overview
Sketching Toolbox Functions
Setup app
All functions are available on all licence levels except for:

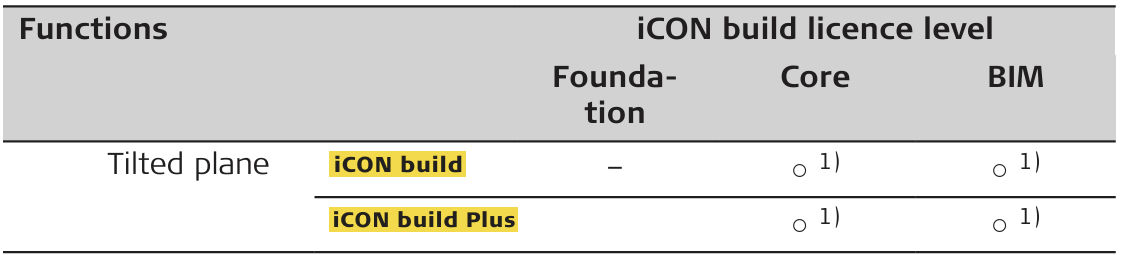

1) Tilted plane is optionally available with an active 'Tilted Plane' licence.
➜ For further information on optional licences refer to:
Availability of Optional Licences
➜ For an overview on all available functions refer to:
General Description
Coordinate System app
All functions are available on all licence levels except for:
Tools/Functions independent of app
