Position Menu Informs about:
• Position Quality:
• Position Quality
• Height Quality
• GDOP: Geometric Dilution Of Precision. The smaller the number, the higher the possible precision.
• Solution: Navigated, Float, Fixed (XRTK) or Fixed
• Position Antenna:
• The coordinate system used: WGS84, Via Network or any loaded coordinate system files.
• Position Coordinates
• Position Height
• Antenna 1:
• The active GNSS antenna
• Height of the active antenna
• Measurement mode of antenna height: Vertical or Height Hook
• RTK Mode:
• The active RTK Mode
• BasePilot: Used or Not Used
• Current Date & Time
Configurable values (if external antenna is connected):
• Antenna type
• Antenna height
• Measurement mode of Antenna height
Satellite Menu Informs about:
• Satellites Antenna 1:
• The number of tracked satellites and available satellites, if no position is given (no base correction data received).
• The number of used satellites and available satellites, when position is available (with base correction data).
• Cut-Off Angle: below this defined angle satellites will not be taken into account for calculations.
• Reference Satellites:
• The number of reference satellites, in rover mode only.
Configurable value:
• Cut-Off Angle
Radio Menu Informs about:
• Radio status information, including managing internal power supply for the radio
• Connection details of the internal and / or external radio
• Base station information
• Radio channel, frequency and bandwidth
• Internal power supply Yes/No, Radio On/Off
• Protocol (for some radio types only)
• Correction format (only in base mode)
When in base mode, the RTK correction format can be edited from within the radio menu.
• FEC (Forward Error Correction) (for some radio types only)
Configurable values:
• Radio channel, frequency and bandwidth
• Internal power supply Yes/No, Radio On/Off
• Protocol (for some radio types only)
• Correction format (only in base mode) When in base mode, the RTK correction format can be edited from within the radio menu.
• FEC (Forward Error Correction) (for some radio types only)
☞ For an internal Satelline radio or an external GFU30 radio the frequency can be set manually and FEC turned On/Off, when radio firmware version 07.27.2.1.1.5 or higher is installed.
Modem Menu Informs about:
• Internal Modem:
• Modem type and connection details
• Managing internal power supply for the modem
• RTK status
• Base Station information
Configurable values:
• Internal power supply for the modem Yes/No
• Modem connect/disconnect
• Selected mobile internet service type
• Correction format (only in base mode)
When in base mode, the RTK correction format can be edited from within
the modem menu.
Power Menu Informs about:
• Battery level of internal and / or external battery
Configurable values:
• None
Bluetooth Menu Informs about:
• Bluetooth connection details and status
Configurable value:
• Activate/deactivate Bluetooth
Leica ConX and Port Summary Menu Informs about:
• The status of Leica ConX and its functions View, Track and Sync
• Enable or disable the Share screen function, to allow a remote user to
view the instrument’s screen
• The different ports and their usage/status
Configurable values:
• Activate/deactivate Share screen
Storage Menu Informs about:
• Internal Memory:
• Free/Used/Total Memory
• Raw data logging active/inactive
• USB Storage:
• Free/Used/Total Memory, when a USB memory device is inserted
Configurable values:
• None
Settings Menu Contains following submenus:

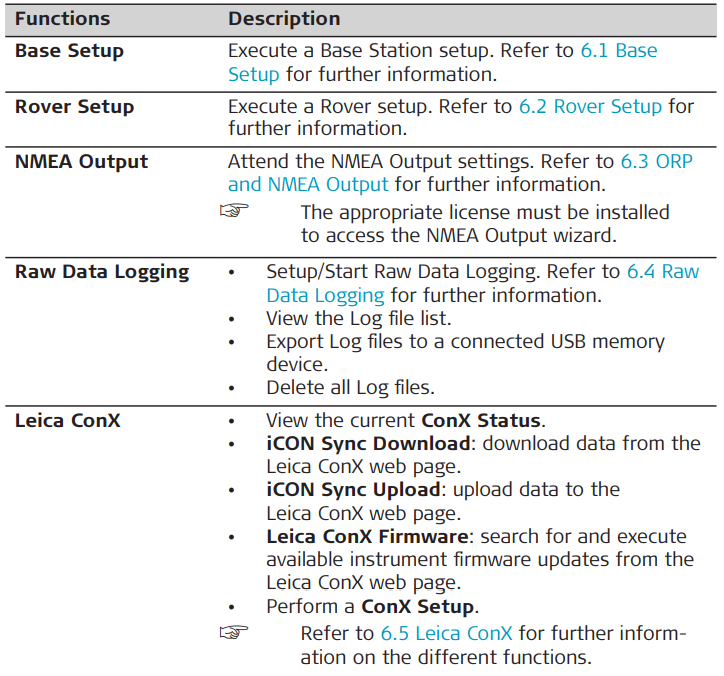

• Tools
• System Information
• System Configuration
• Service
• Copyrights
Settings Menu: Tools

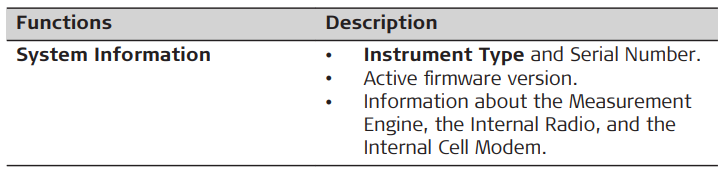

Settings Menu: System Information

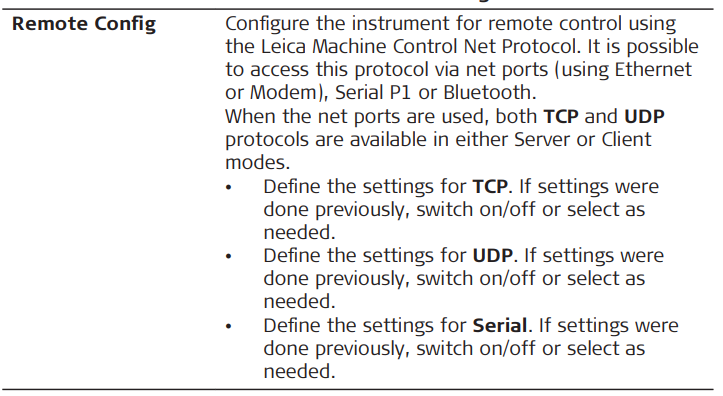

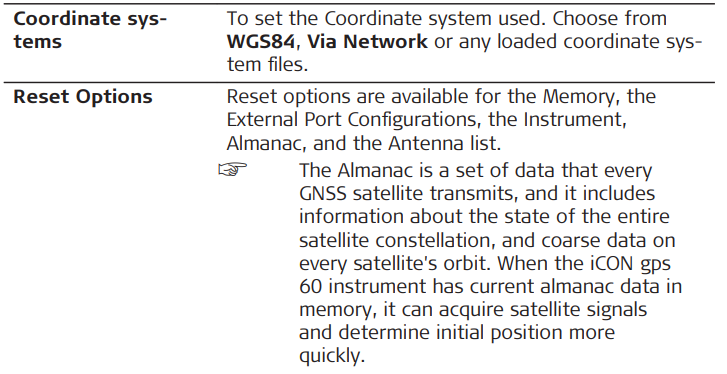

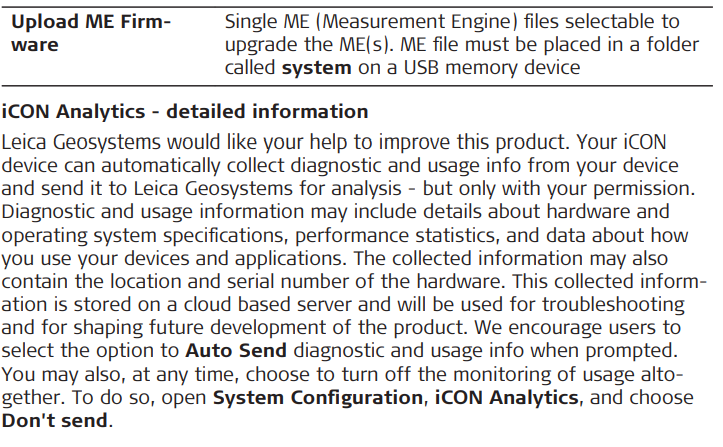

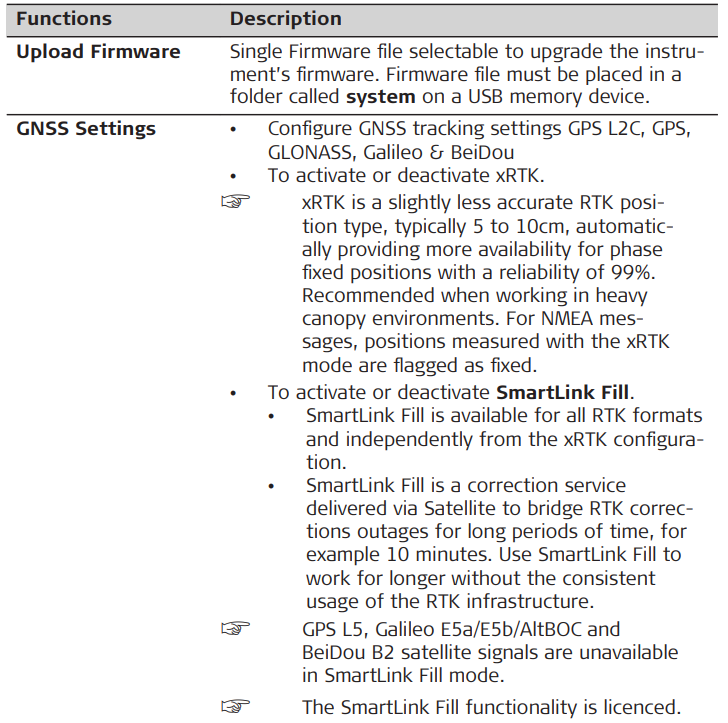

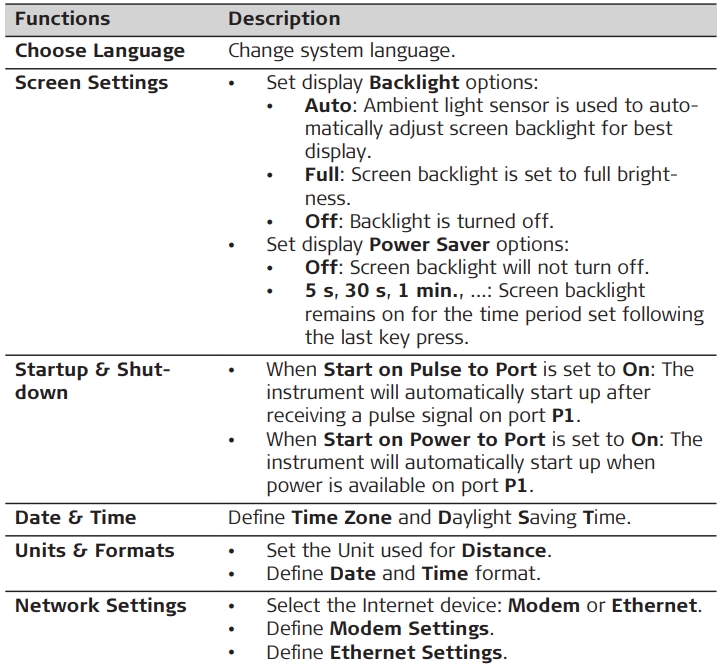

Settings Menu: System Configuration

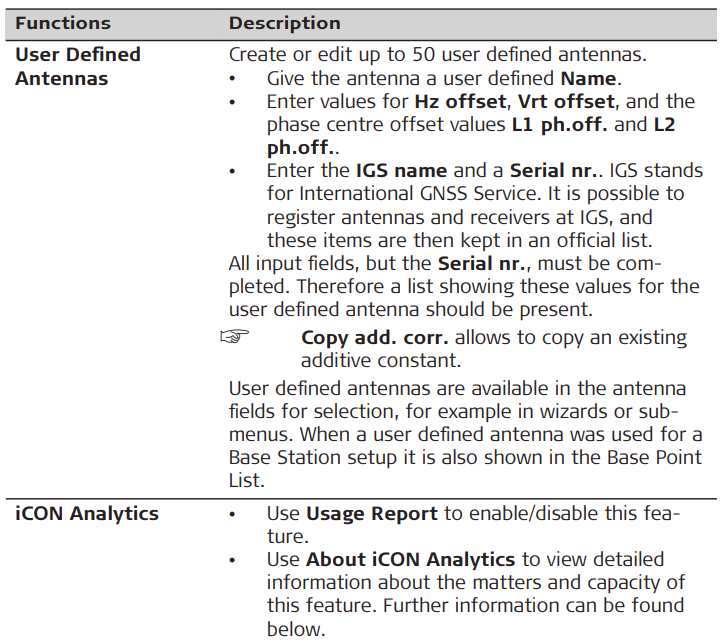

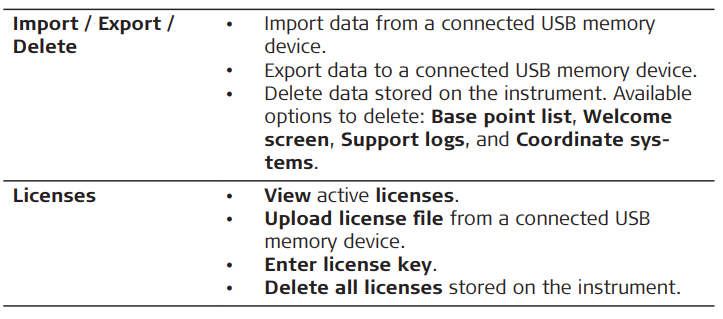

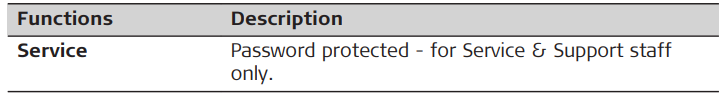

Settings Menu: Service
Settings Menu: Copyrights
This software contains copyright-protected software that is licensed under various open source licenses.
• Press Settings > Copyrights to view the copyright information and a link
to download the source code and license text.
And/Or
• The according copyright statements and license texts are part of the documentation delivered with this product.
If foreseen in the corresponding open source licence, you may obtain the source code, license texts and other related data on the open source centre website of Leica Geosystems, http://opensource.leica-geosystems.com.
