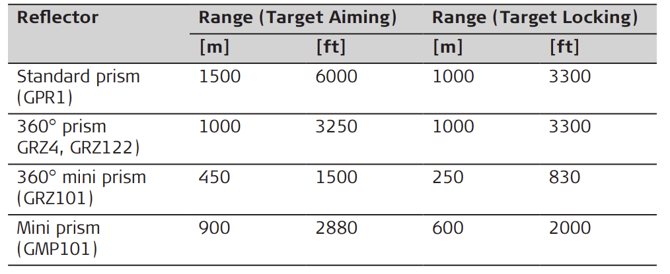

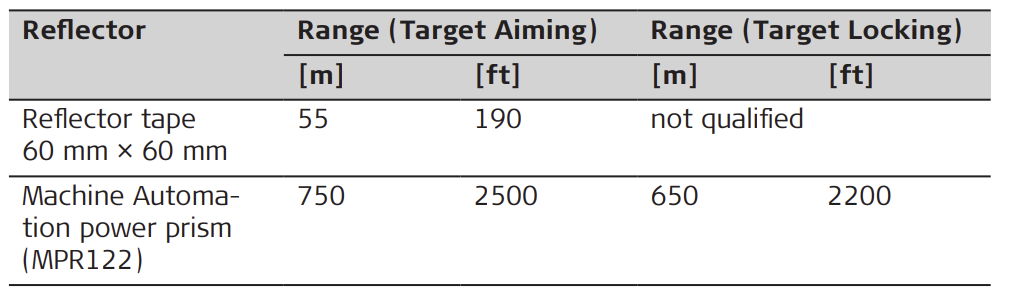

Range of target aiming/target locking
➜ The maximum range depends on the atmospheric condition. Rain, strong sunlight or severe heat shimmer can decrease the maximum range.
Shortest measuring distance: 360° prism
(target aiming):
1.5 m
Shortest measuring distance: 360° prism
(target locking):

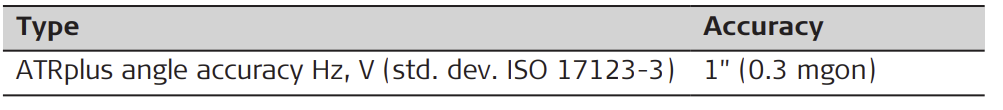

ATRplus accuracy with the GPR1 prism

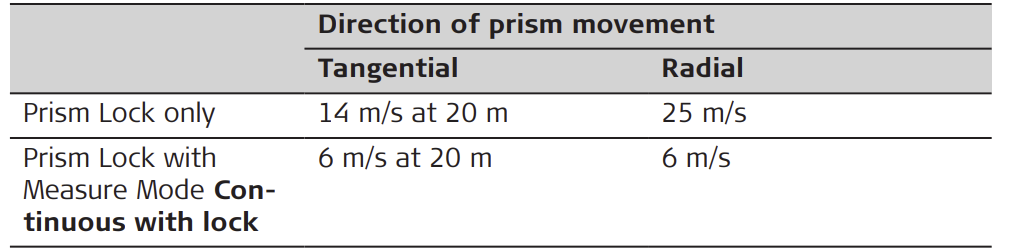

Maximum prism speed
➜ A tangential movement means the prism is passing by the instrument at the specified distance.
A radial movement means the prism is moving away from or towards the instrument in the line of sight direction.

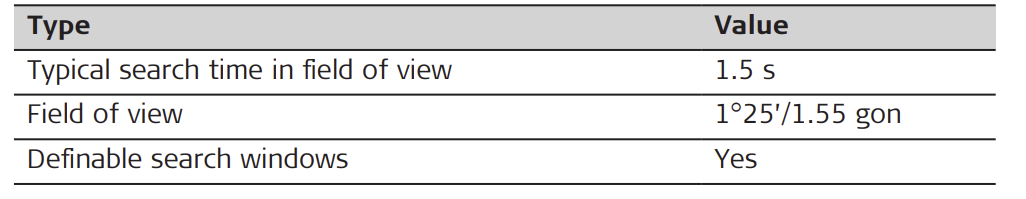

Searching

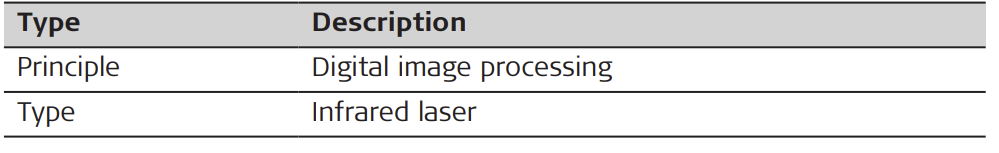

Characteristics
