Automatic Target Aiming iCR70 (ATR) 7.5

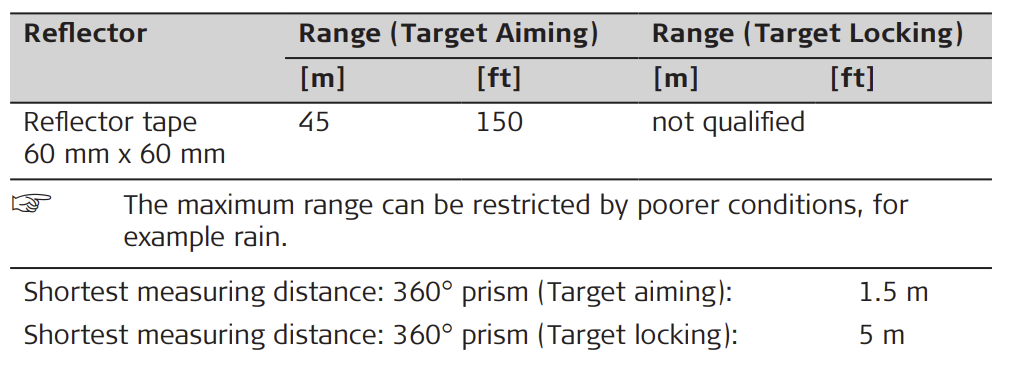

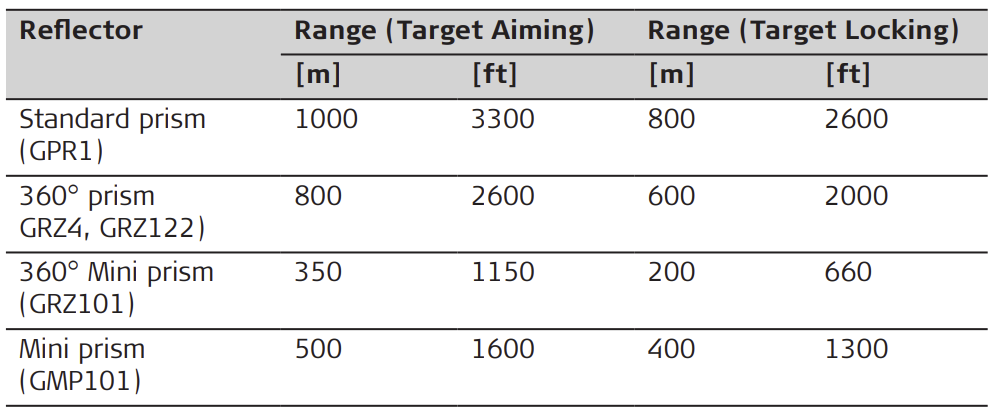

Range of target aiming/target locking

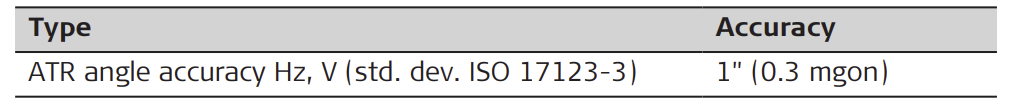

ATR accuracy with the GPR1 prism

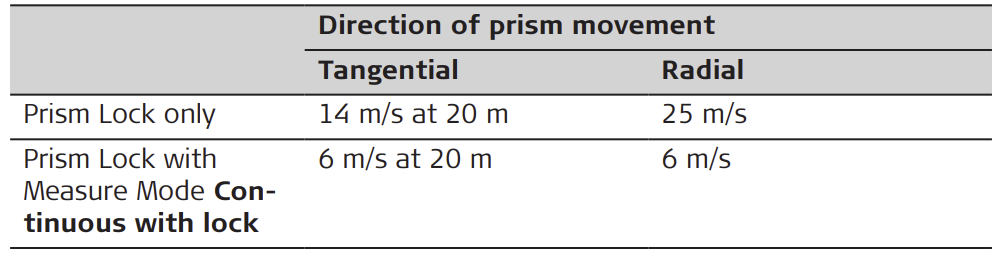

Maximum prism speed

➜ A tangential movement means the prism is passing by the instrument at the specified distance.
A radial movement means the prism is moving away from or towards the instrument in the line of sight direction.

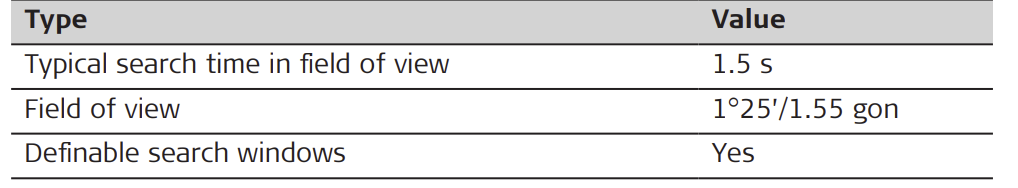

Searching

Characteristics
