Description: Some applications require knowledge of the pin assignments for the instrument ports. In this chapter, the pin assignments and sockets for the instrument ports are explained.

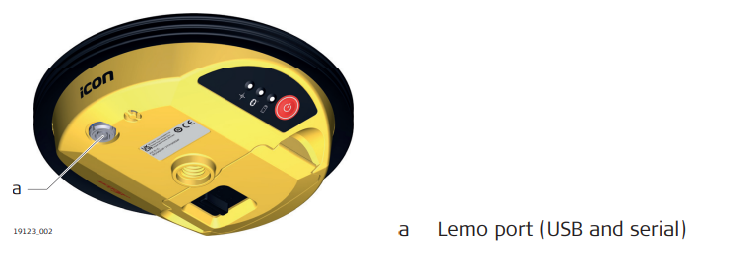

Ports at the instrument underside

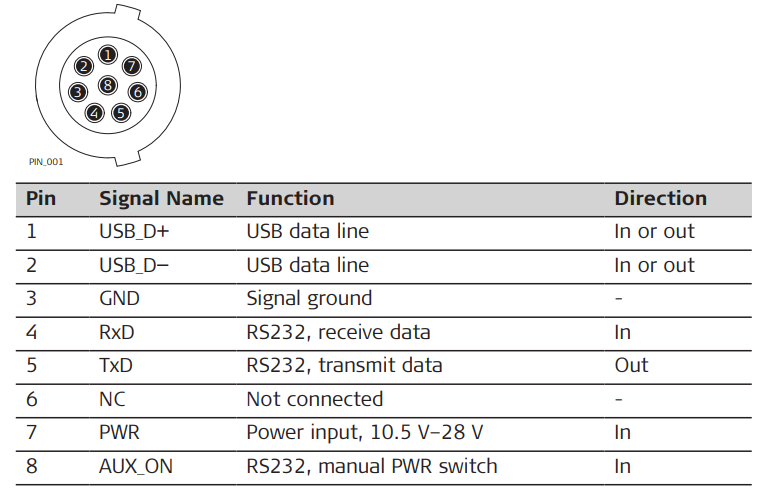

Pin assignments for 8 pin LEMO-1
Sockets
