Description and use: The GNSS antenna is selected for use based upon the application. The table gives a description and the intended use of the antenna.
Dimensions
Connector: TNC female
Mounting: 5/8" Whitworth
Weight: 0.4 kg

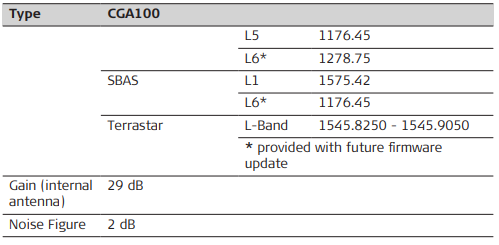

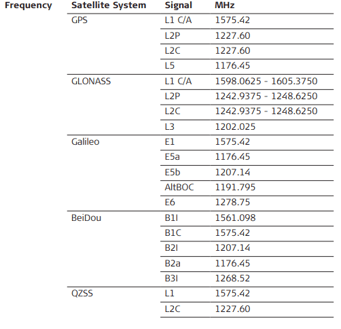

Electrical data
➜ Galileo AltBOC covers bandwidth of Galileo E5a and E5b.
Environmental specifications
Temperature
Protection against water, dust and sand

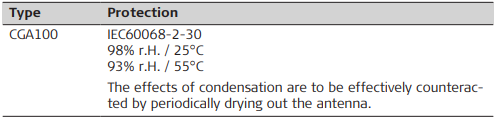

Humidity

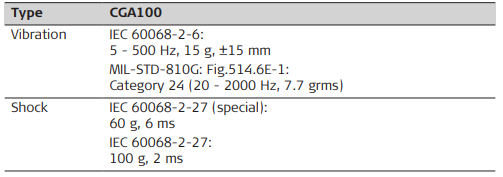

Vibration/shock
Cable length
