- Create angular dimensions between:
- Two nonparallel lines
- Centre and two points
- Follow the steps indicated in the software.

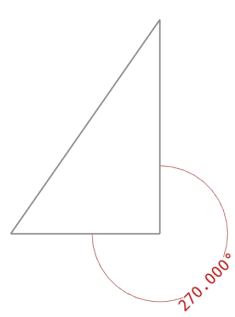

Example:
| Inner Angle | Outer Angle |
 |
 |
Additional Options:
| Icon | |
 |
Size Change text size. |
 |
Swap Switch between inner and outer angle. |
☞ All dimensions are created on the Dimensions layer.
