Dimensions [mm]: L = 176.2, W = 176.2, H = 108.8
Weight [kg]: 1.240*
* Instrument weight without battery and SD card
Recording
Data (Leica GNSS raw data and RINEX data) can be recorded on the SD card. 1 GB is sufficient for over 1 year of raw data logging based on logging every 15 s from an average of 15 satellites.
Power
Internal battery
External battery

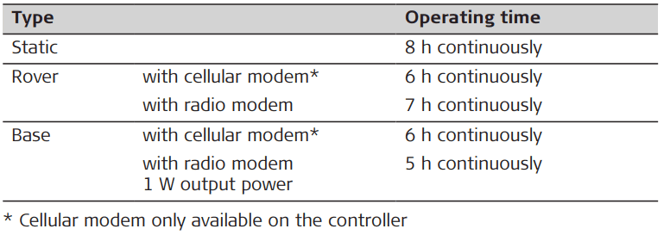

Operating times
The given operating times are valid for
• iCON gps 70: instrument; one fully charged GEB334 battery.
• Room temperature; operating times will be shorter when working in cold weather.

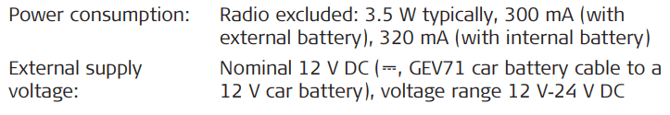

Electrical data

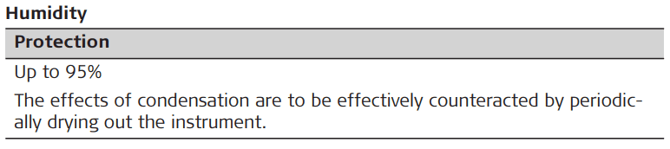

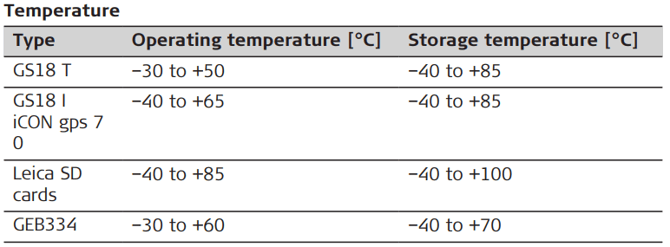

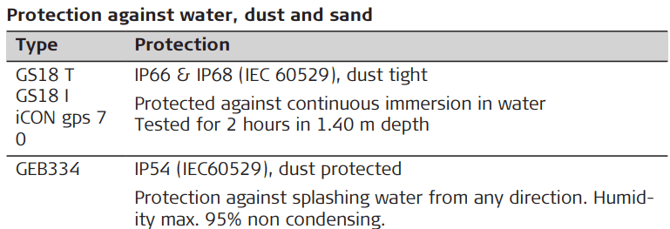

Environmental specifications

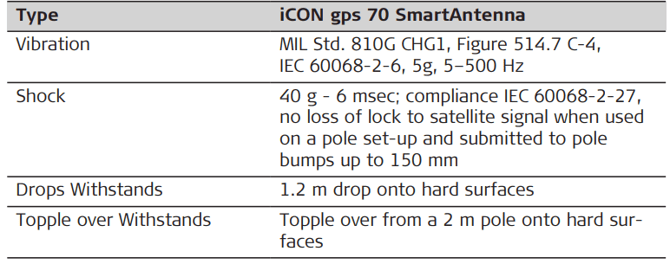

Vibration/Shock
