Information bar values
| Type/Icon | Description |
|

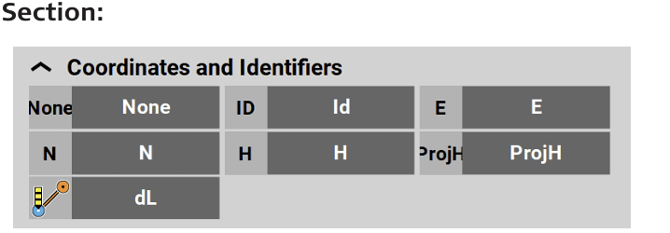

Id
|
Point ID of the current point to record. |
|
E
|
East value at the current target position. |
|
N
|
North value at the current target position. |
|
H
|
Height at the current target position. |
|
ProjH
|
A value set during project creation to define a height shift for measured points in the project. |
|
dL
|
The distance between the last point measured and the selected Reference. |
| Type/Icon | Description |
|

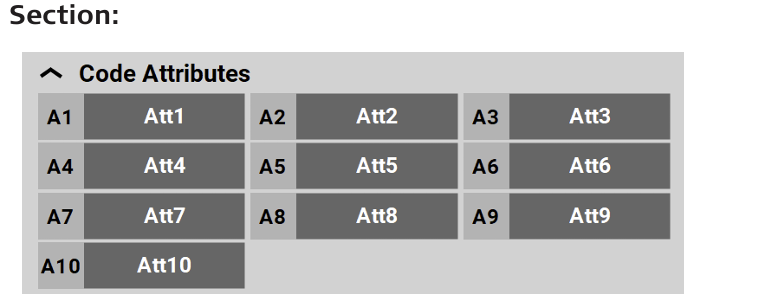

Att1 ... Att10
|
Code attributes 1 to 10 of measured point. Up to 25 attributes can be defined, up to 10 attributes can be displayed in the Information bar. |
