Installation information- Installation of the Quick Release Machine Bracket CMB6 should be carried out in a way to respect following aspects:
• Stable mounting construction, in a position without interfering the operators work space.
• The Quick Release Base Bracket as part of the CMB6 must be installed on the machine or the desired installation spot accordingly, either using the Magnetic Mount or bolted.
• Easy and secure access to attach and detach the iCON gps 80 instrument.
• Easy and secure access to all connected cables.
• Easy access to the iCON gps 80 keys and a clear view on the display.
☞ Like all other installation works, the installation of the CMB6 must be done by a dedicated installation specialist. Please contact the local selling unit or dealer for further information.
Attach and detach the iCON gps 80 step-by-step
Attach the iCON gps 80
☞ iCON gps 80 needs to be pre-assembled with the left and right clamping rail of the Quick Release Machine Bracket CMB6. The Quick Release Base Bracket must be pre-installed on the
machine or the desired installation spot accordingly, either using the Magnetic Mount or bolted.
- Insert the iCON gps 80 into position on the "fixed jaw" side of the Quick Release Machine Bracket CMB6.
- Lower the instrument on the "spring jaw" side of the CMB6, until the locking bolt snaps into place.
- If applicable, attach a padlock to the feed through and lock up.
- Connect all cables needed for the current configuration to the corresponding connectors. Cables and connectors are colour coded, for easy assignment.
☞ Ensure to connect all cables to the corresponding connector, to protect the instruments from damage.
When the cables have been stored on a dummy plug before, close the dummy plug with its protection cap.
Detach the iCON gps 80
☞ Before detaching the iCON gps 80, ensure the instrument is properly shut down and power switched off.
- To detach the iCON gps 80, first detach the connected cables one by one and store them onto a proper dummy plug. Connector positions and dummy plugs are symbol coded, for easy assignment.
- If applicable, unlock and detach the padlock.

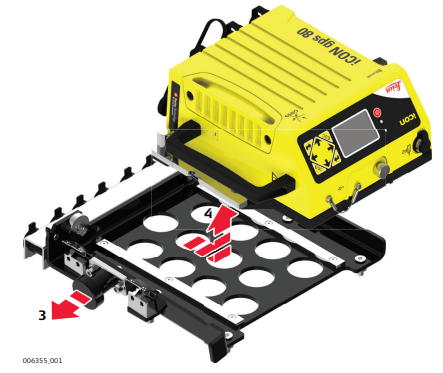

- Withdraw the locking bolt from its locking position and arrest it in open position by rotating.
- Slide the instrument on the guiding rails of the Quick Release Machine Bracket CMB6 out of the guides and remove the instrument. Take care not to cant the upper and lower part of the CMB6.
- Refit the protection caps of the iCON gps 80 plugs.
☞ The plugs of the iCON gps 80 and the CMB6 should always be covered using the corresponding protection cap, when no cable is plugged in.
