Pin Assignments and Sockets: Appendix A

Description

Some applications require knowledge of the pin assignments for the instrument ports. In this chapter, the pin assignments and sockets for the instrument ports are explained.

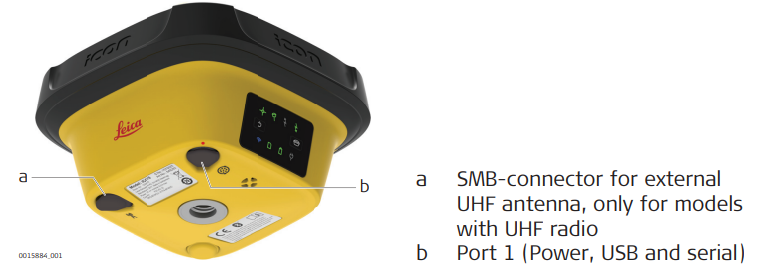

Instruments ports at the underside

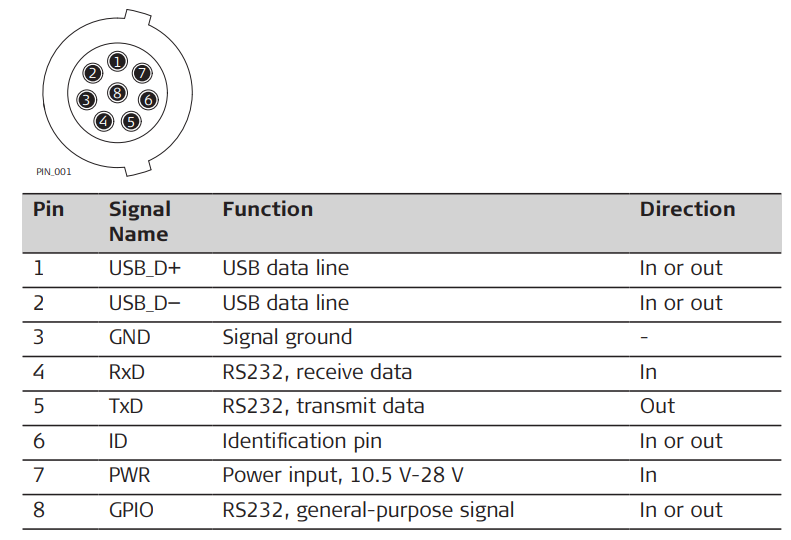

Pin assignments for port P1
