NMEA Output description: To transmit data using the NMEA standard protocol, the instrument must be configured accordingly.
➜ The appropriate position rate licences must be installed to access all output rates.

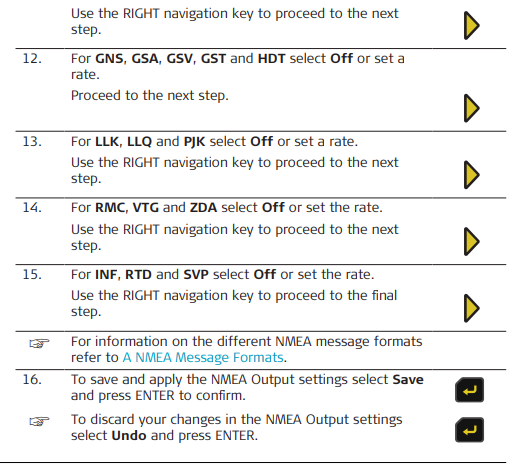

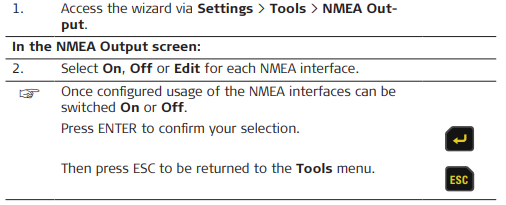

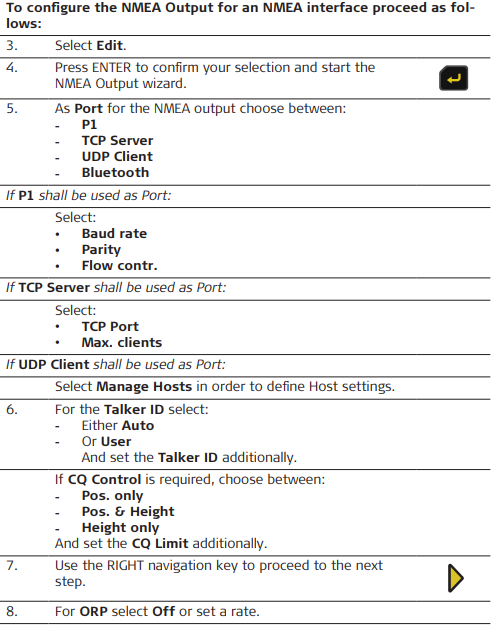

Configuration of NMEA Output step-by-step
ORP Output
The ORP output differs from standard NMEA messages:
• The ORP message is a Leica proprietary message and delivers position information of one or two antennas.
Configurable values
• Rate: Define the output rate.
• Output: It is possible to stream one position.
• Coords and Height: The available Height format depends on the selected Coordinate format. For local coordinates a "*.lok" or an "*.xml" file is required.

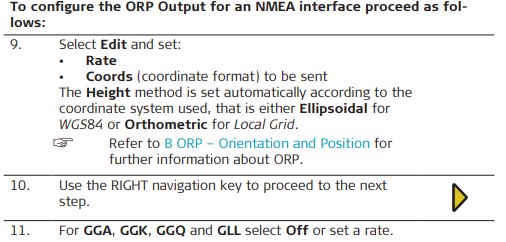

ORP settings can be accessed via Settings > Tools > NMEA Output. Toggle to Edit for NMEA Out 1 or NMEA Out 2. ORP is available on the second page of the wizard.
Refer to B ORP – Orientation and Position for further information about ORP.
