Local Base Station setup, on Pillar
Local Base Station setup, on Pillar step-by-step
☞ Ensure Satel Radio CCD22 is correctly installed and configured.
☞ The pillar must be prepared to mount the CTB102 tribrach to.

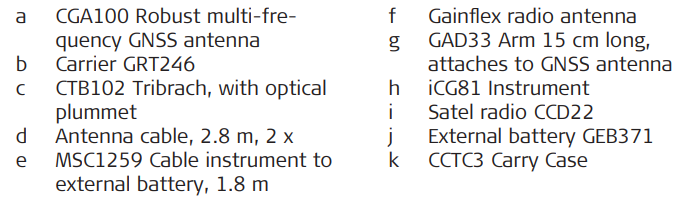

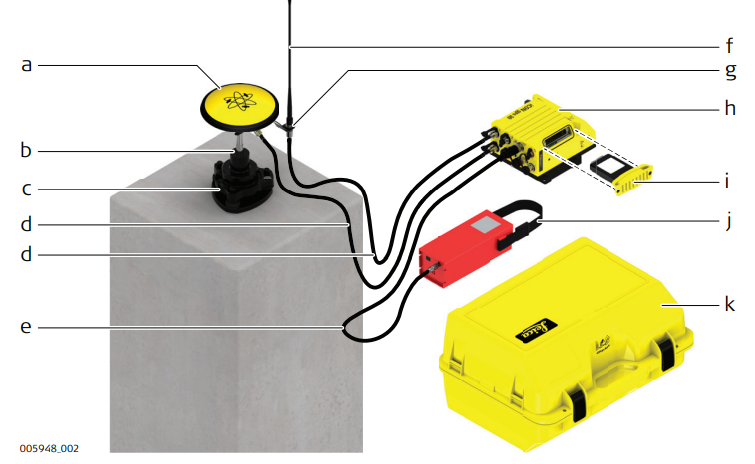

1. Setting Up the Equipment
• Mount and level the CTB102 tribrach onto the pillar.
• Place and lock the GRT246 carrier into the tribrach.
• Screw the CGA100 GNSS antenna onto the carrier.
• Place the iCG81 onto the pillar or any other suitable location.
• Place the external battery GEB371 onto the pillar or any other suitable location.
• Attach the GAD33 arm to the base of the CGA100 GNSS
antenna.
• Attach the Gainflex radio antenna to the GAD33 arm.
• Use the Antenna cable to connect the GNSS antenna to port ANT1 on the iCG81.
• Use the second Antenna cable to connect the GAD33 arm to the RADIO port on the iCG81.
• Use the MSC1259 cable to connect the external battery to the P1 port on the iCG81.
• Turn on the instrument.
2. Perform a Base Station setup on the iCG81.
☞ Refer to 6.1 Base Setup for further information.
