Use: The equipment setup is used for real-time rover with extended periods of use in the field.
Description: Connections are made to the GNSS iCG30 antenna and field controller. The
field controller is fixed to the pole with the GHT63. Connection between the iCON gps 30 instrument and the field controller is made through Bluetooth.
• The antenna is mounted directly using screw fitting.
• Carbon fibre poles are used. They can be replaced with their aluminium equivalent without any change to these instructions.

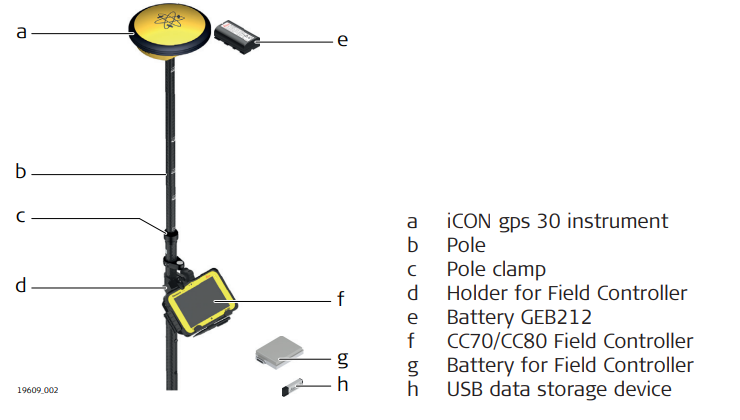

Real-time rover setup with iCON gps 30
Cellular modem available on the CC70/CC80 Field controller.
Real-time rover setup step-by-step
Setting up the Equipment
- Insert the battery into the iCON gps 30 Smart Antenna.
- Screw iCON gps 30 Smart Antenna onto the top of the telescopic pole.
- Ensure that the compression lock is not clamped.
- Extend the telescopic pole and ensure that the snap-lock clicks into its position. The snap-lock ensures that there is no slipping of the telescopic pole.
- Clamp the compression lock. The compression lock maintains straightness.
- Fix the holder to the clamp with the tightening screw. Before tightening, ensure that the holder is at a comfortable working height and angle. It can be achieved by sliding the clamp along the pole and rotating the holder about the clamp. Tighten the tightening screw.
- Insert the battery into the field controller.
- Clip the field controller onto the holder and lock into position.
- Turn on the antenna and the controller.
- Run the data collection or stakeout application of the iCON field software
☞ Refer to the Leica iCON Field software manual for further information.
