Description:
Combined adjustment procedure step-by-step
The following description explains the most common settings:
➜ It is recommended to use a clean Leica circular prism as target. Do not use a 360° prism.
- • Connect the device with the Instrument.
• Select Devices from the Home Menu.
• Select your instrument and tap the arrow.

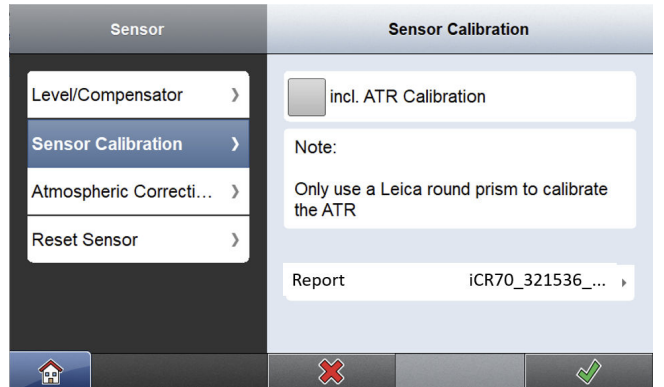

➜ When being connected to an iCR50 or a iCR70/iCR80S via the controller, or when using the onboard software of any iCON driven TPS, the TPS calibration report function is available. For information on the calibration report, refer to iCON build/iCON site How-To Guide. The calibration report can also be exported. Refer to iCON build/iCON site How-To Guide. - Select Sensor Calibration.
• Select the incl. ATR Calibration option if you like to calibrate
the ATR.

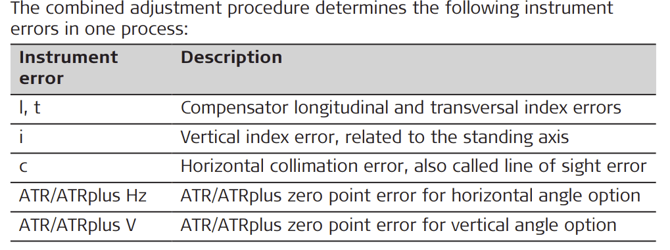

• Tap
to see which instrument errors are determined.
• If applicable, tap Report to view a list of all calibration reports. Tap the name of a report to show the respective calibration results. If no calibration reports are available yet, the button is greyed out.
• To start calibration, tap
. Follow the wizard which guides through the calibration.

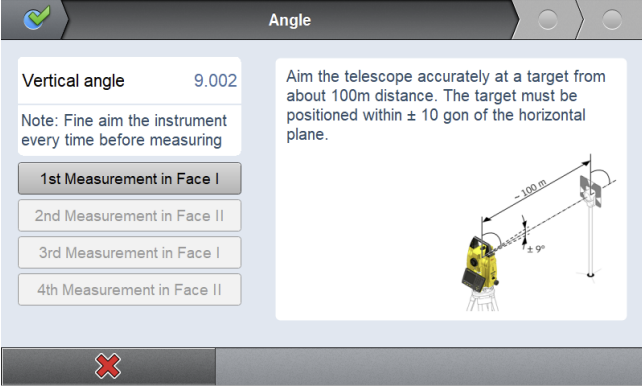

- • Aim the telescope accurately at a target at about 100 m distant. The target must be positioned within ± 9°/± 10 gon of the horizontal plane. Start the procedure in telescope face one.
• Press the measurement keys to measure and to continue to the next step.
• Motorised instruments change automatically to face one.
➜ The fine pointing has to be performed manually in both faces.
•Tap
in the wizard to get to the next page.

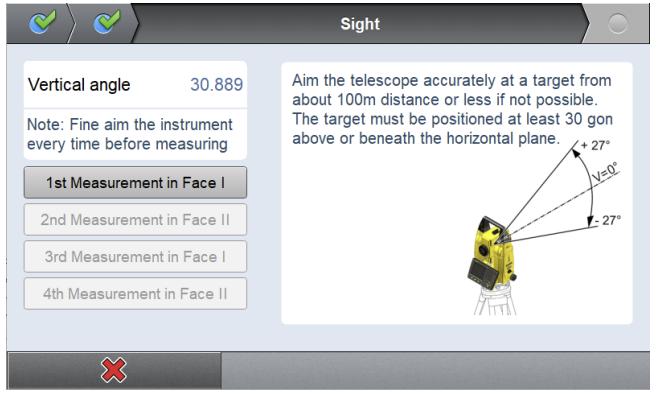

• Aim the telescope accurately at a target at about 100 m distant or less if not possible. The target must be positioned at least 27°/30 gon above or beneath the horizontal plane.
• Press the measurement keys to measure and to continue to the next step. Motorised instruments change automatically to the other face.
➜ The fine pointing has to be performed manually in both faces.

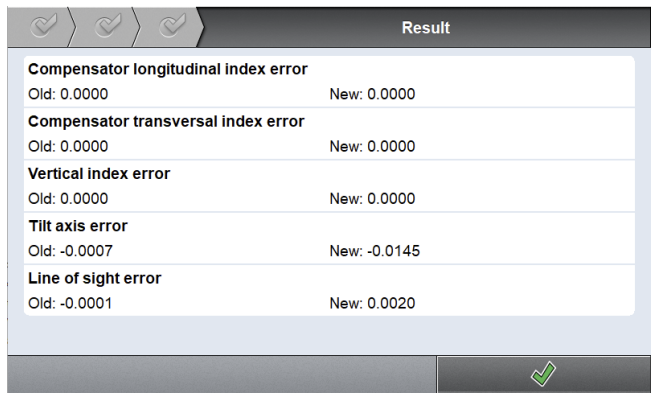

- Adjustment Accuracy
After pressing the last
in the wizard, the results are shown and stored to the instrument.
- Tap
to get back to the Devices page.
