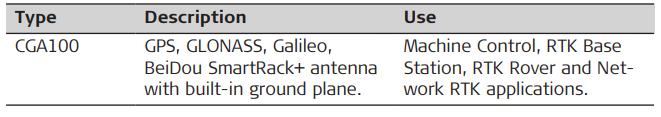

Description and use: The GNSS antenna is selected for use based upon the application. The table gives a description and the intended use of the antenna.

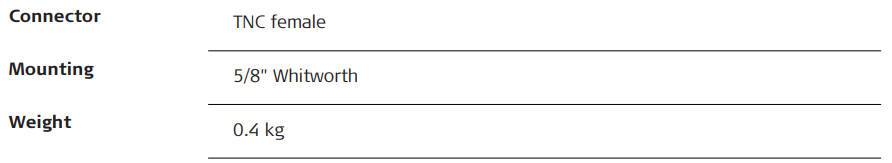

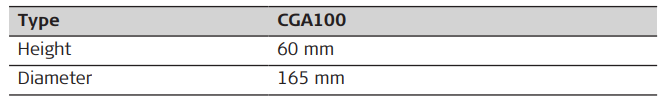

Dimensions

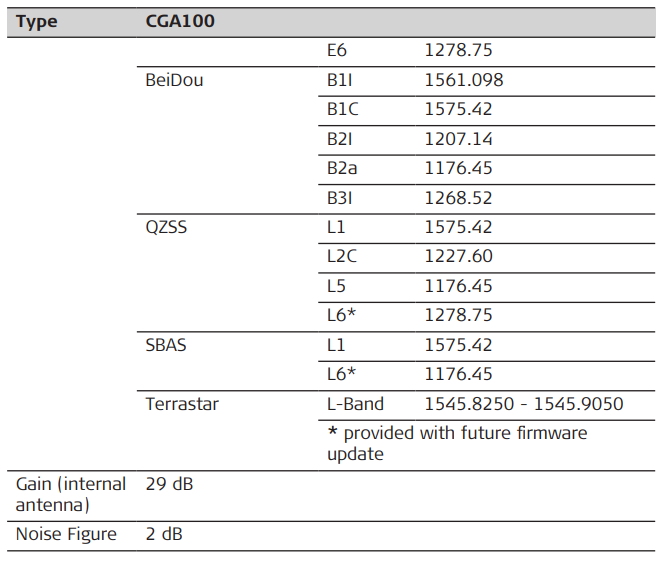

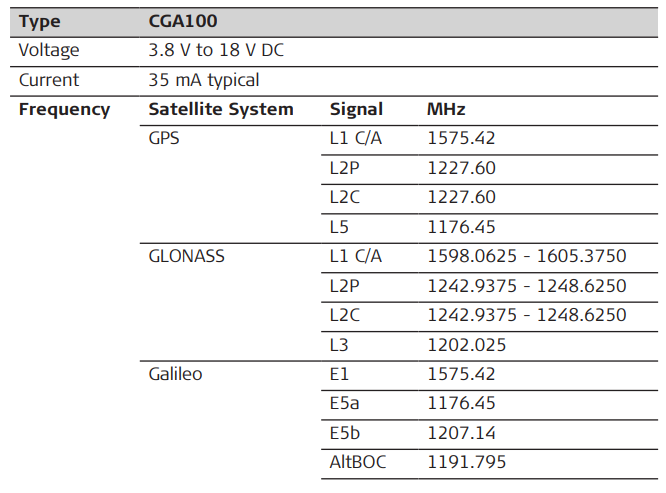

Electrical data
Galileo AltBOC covers bandwidth of Galileo E5a and E5b.
Environmental specifications
Vibration/shock

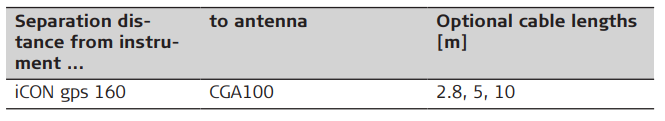

Cable length
