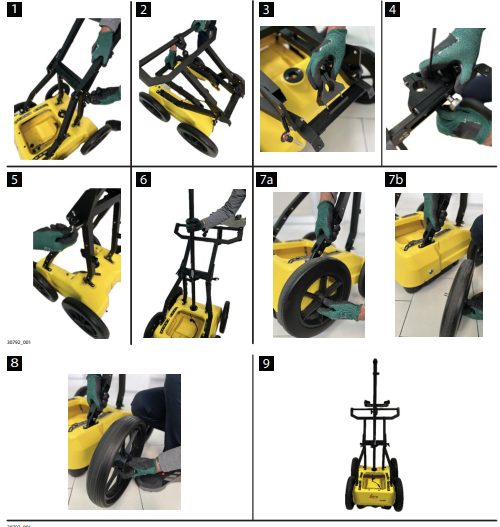

Step-by-step
1. Starting from the Starter kit set-up, release the rudder from the U-frame by removing the two pins on the side.
2. Fold back the rudder on top of the U-frame to a horizontal position to the top of the cart.
3. Place the GNSS support in the center of the horizontal bar of the rudder by fitting the two screws inside the two holes.
4. Fix the two screws against the two bolts and washers provided with the kit. Use an Allen key #4 on screw side and a socket wrench on the bolt side.
5. Place the rudder and the U-frame in the original position (vertical) and enter the two pins on the side of the rudder.
6. Fit the GNSS pole inside the support mounted on the rudder.
7. a) Remove the A310 wheels by pressing the button in the center of the wheel.
b) Gently pull the wheels outwards.
8. Replace the A310 wheels just removed, by the A380 wheels. Do the same operation as before but pushing instead of pulling. Repeat the same operation for the four wheels
9. The setup is completed. No field PC is shown.
